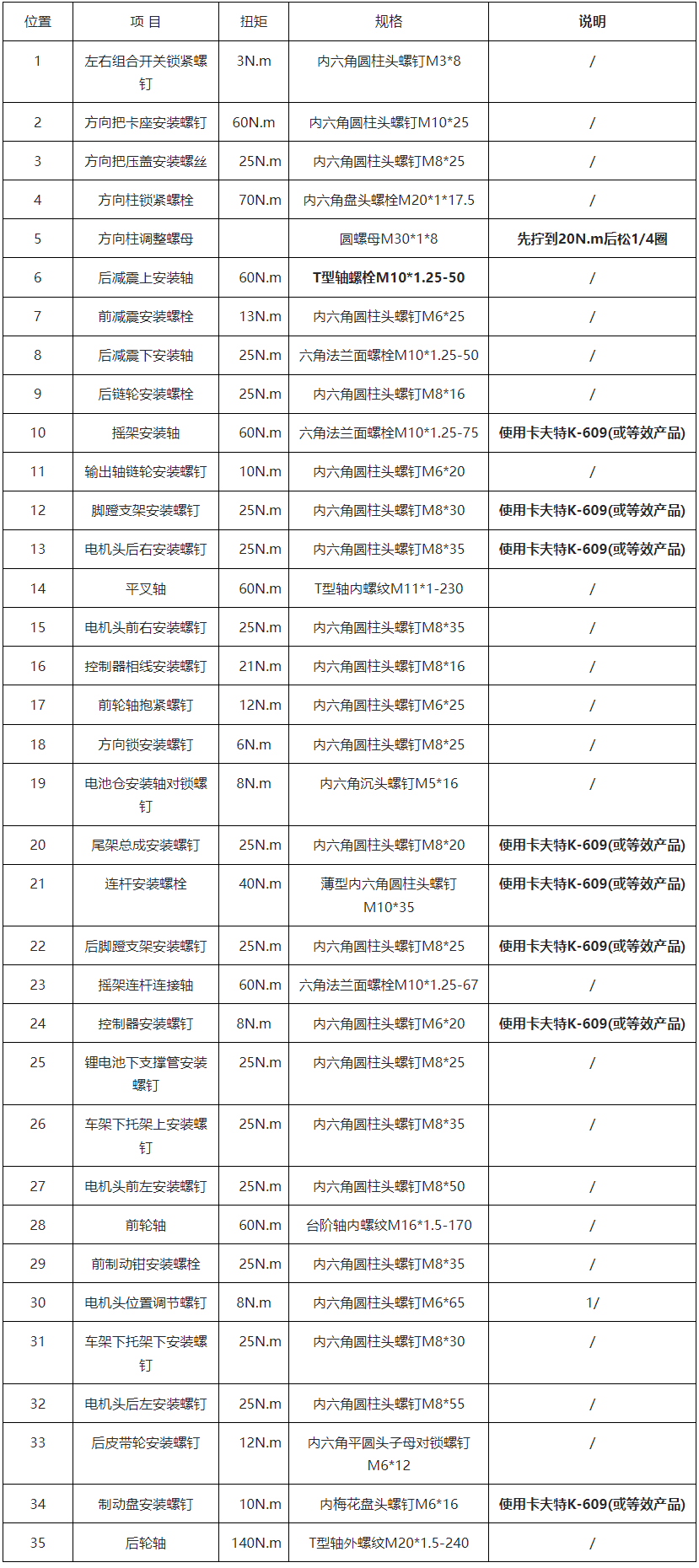

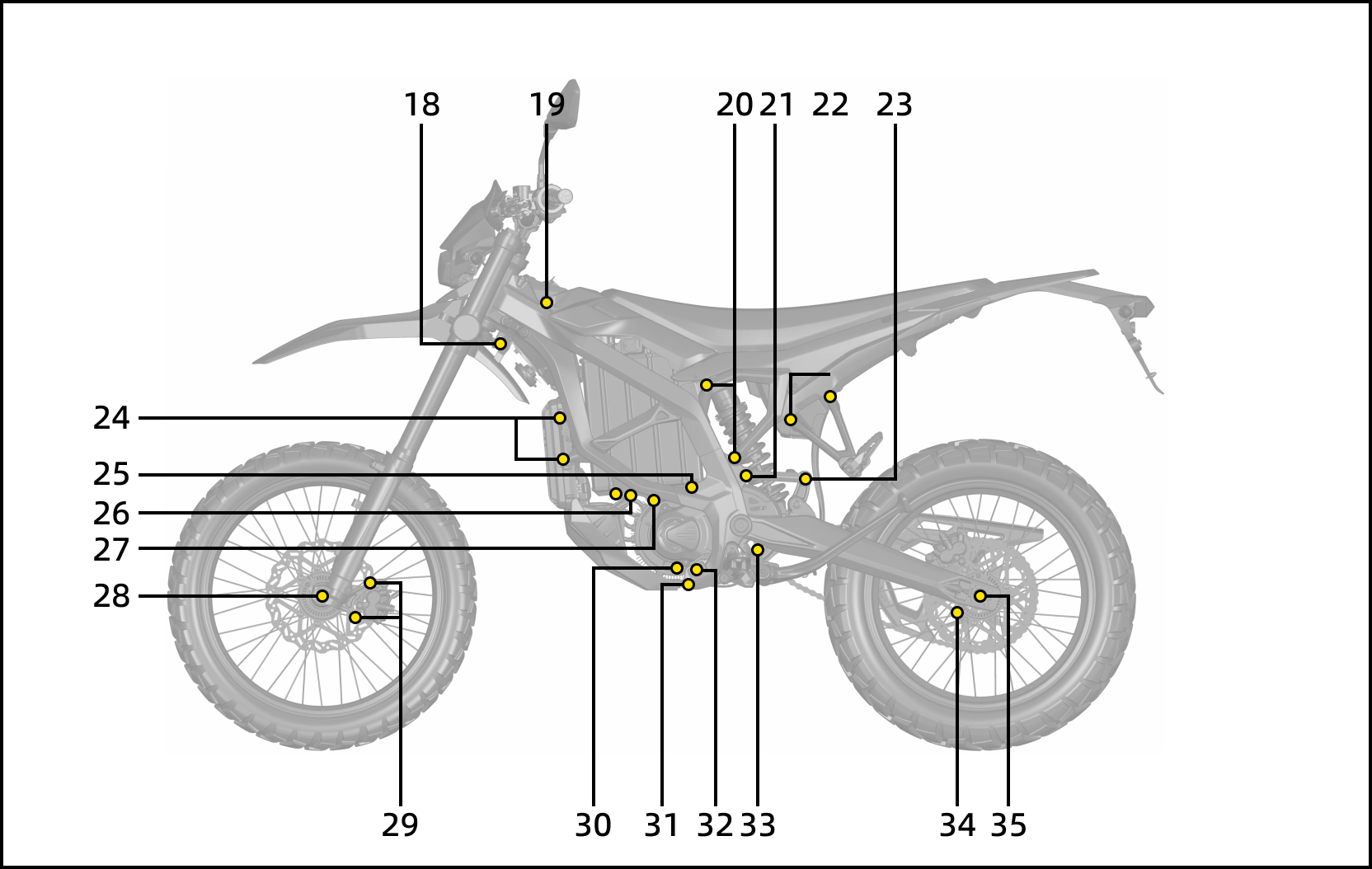

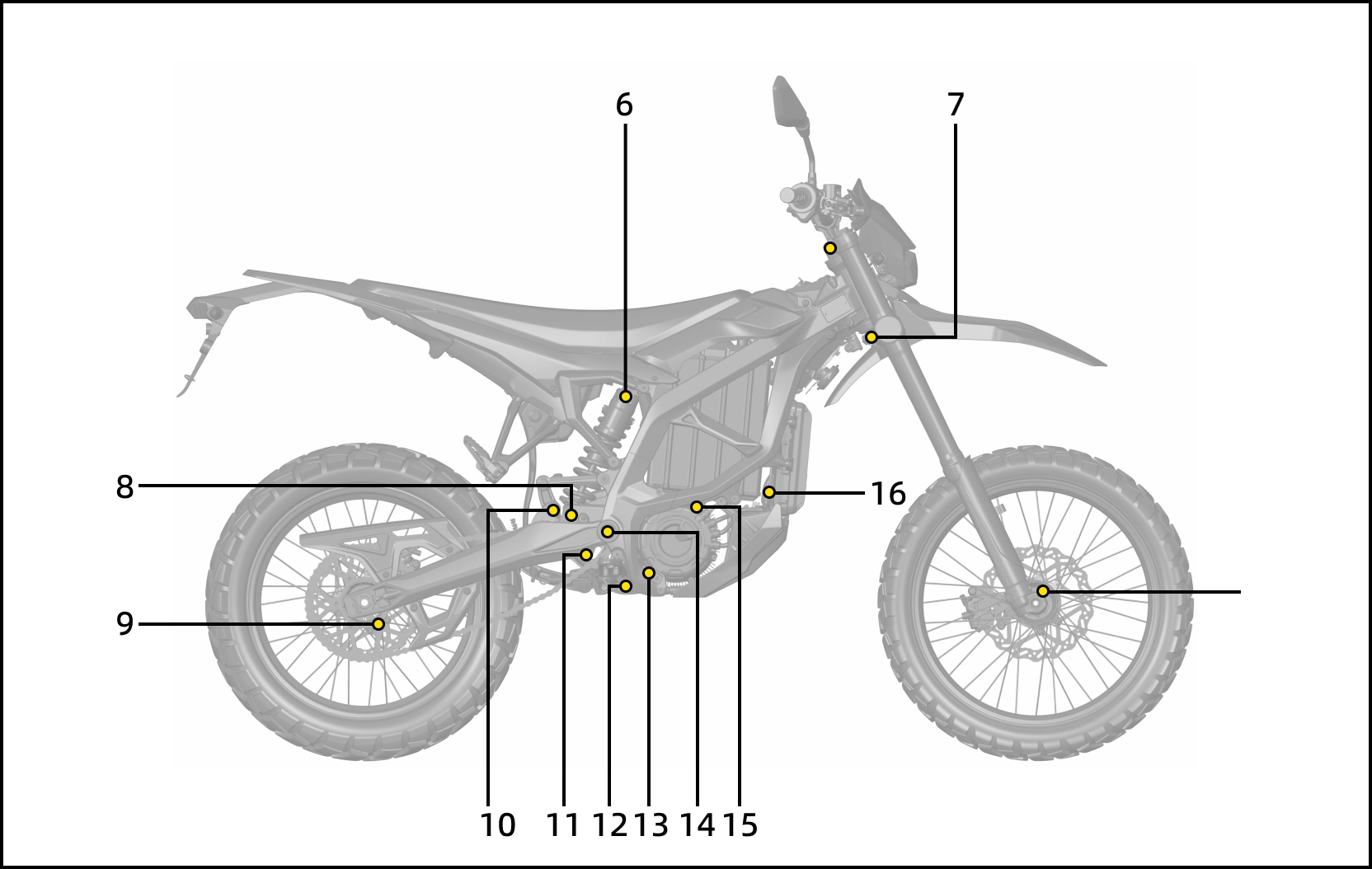

The installation torque value of the direction handle gland is 25N.m;

Front axle torque value 60N.m;

The torque value of the front wheel axle tightening screw is 12N.m;

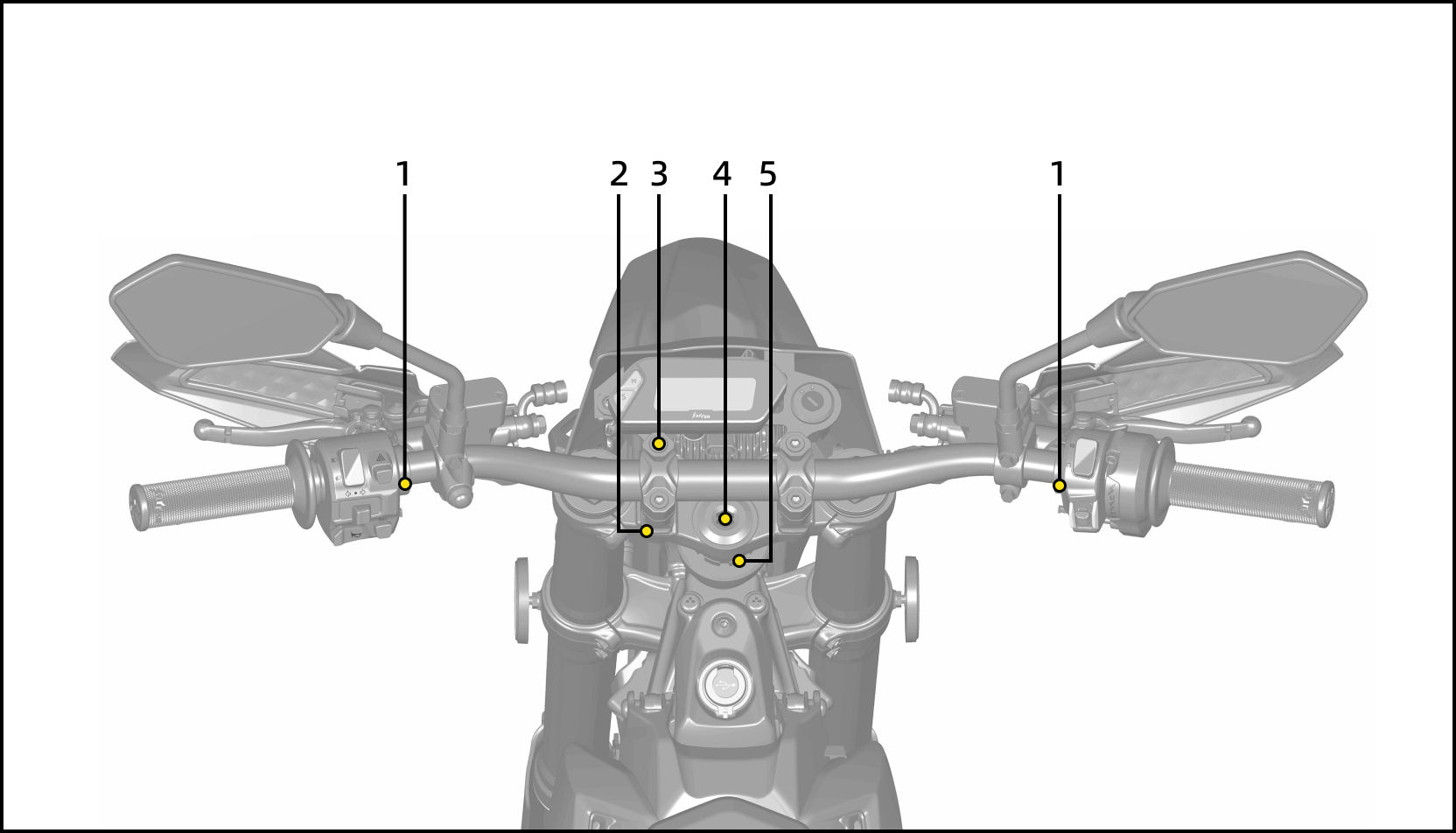

The torque value of the left and right combination switch locking screws is 3N.m.

Please fully charge the battery first, plug in the discharged orange plug on the battery, and then plug in the blue plug (note the order: first orange then blue, remove the plug first blue then orange). The orange plug is the power output plug, and the blue plug is the battery communication plug. Check the tire pressure and whether all self-installed screws are tight. Remember to wear a helmet and other protective gear and obey local traffic laws.

The power requirements are marked on the charger. According to the local mains power parameters, strictly follow the requirements and steps in the instruction manual. If the charger does not match the local mains power, please do not force it to be used. Jiefeng has a charging power selection option in the vehicle instrument settings.

U1 is 480W, U2 is 750W, and U3 has a maximum of 1100W. Set the corresponding gear according to the actual charging power.

The Extreme Bee can ride the furthest at a speed of 40km/h. Maintaining gentle acceleration and driving at a low average speed can extend the cruising range as much as possible.

Due to regulatory requirements, the car lights have no switch and are always on when powered on. The overall power consumption is very low and can be ignored.

Make sure the total mileage is within the range of the vehicle, and consider returning when 60% of the battery is left. You can ride about 120KM by maintaining 20km/h. Excessive altitude climb and excessive emergency acceleration will accelerate the consumption of battery.

You can go to the local dealer for a vehicle test drive. During the test drive, you need to provide a motorcycle driving license and sign a test drive agreement before you can test drive.

Go to Qiulong’s official website to check for local dealers.

Our poles are shipped worldwide in cartons on pallets, optimized to reduce the use of plastic. Inside the box, you'll find everything you need to set up your vehicle, including all relevant tools. If you want to see what the delivery box looks like and learn how to unbox and set up your Polar Bee electric motocross bike.

If you choose to pick up your vehicle from one of our dealerships, they will assemble your vehicle for you beforehand.

You can make inquiries through the channel where you place your order (Qiulong Tmall flagship store, Qiulong JD flagship store, offline dealers).

The delivery time in areas except Tibet and Xinjiang is about 3-5 days; the delivery time in Tibet and Xinjiang is about 5-10 days.

A motorcycle driving license is required, namely E license and D license. Qiulong Qingfeng 3C, Jifeng 3C, and Bongfeng 3C are all electric motorcycles.

You can choose the installment option on Qiulong JD flagship store or Qiulong Tmall flagship store. Currently, financial solutions are only available on Huabei and JD Baitiao.

Yes, JiBee’s charger is included in the price. Chargers and all the tools you need to rebuild your Polar Bee are included and will arrive with your vehicle so you can start riding the same day it arrives.

JiFeng 3C version is a motor vehicle and requires a motor vehicle yellow card. Please consult the local traffic management department.

Do not use a high-pressure water gun to wash the vehicle. When washing the car, avoid direct flushing of the plug and wire installation locations, and avoid direct flushing of gaps in the bearings and other rotating parts.

Regularly check tire wear and air pressure, check the wear of brake pads and discs, and pay attention to whether the chain has sufficient lubrication. It is recommended to send it to the dealer for a comprehensive inspection at least every six months.

The vehicle is designed with certain waterproof capabilities. It is recommended that the wading depth should not exceed the motor, and the chain and bearings need to be maintained in time after riding in wading.

Protection functions include brake power-off protection, dumping power-off protection, side bracket power-off protection, over-current protection, over-voltage protection, over-temperature protection, over-charge protection, over-discharge protection, stall protection, and handlebar overrun protection. Different models may have different protection functions. The actual model shall prevail.

The number of E can be set in the instrument. There are a total of six sliding power recovery levels from 0 to 5.

You can set the number B in the instrument, with a total of six brake assist strength levels from 0 to 5.

It is recommended to use it within the range of 0°C-40°C; problems that are too high or too low can easily damage the battery or activate the protection function.

In the fully charged state, in order to protect the battery, the program turns off the two functions of sliding kinetic energy recovery and braking kinetic energy recovery. When the battery power drops to an appropriate level, the functions will automatically resume.

It is recommended to contact the official dealer in time.

It is recommended to stop using the vehicle immediately and contact the official dealer.

JiBee has a tilting power-off function. Large jumps may cause the sensor swing to be too large and trigger the power-off protection function. It will be normal after restarting the vehicle.

JiFeng has Qiulong’s self-developed off-road traction controller system. There is an ASR activation switch on the back of the left combination switch. Press it to temporarily activate the ASR control. Click three times in succession to turn on or off the ASR function. There is an ASR switch on the front of the left combination switch. R/S button, click this button once to display the current ASR intervention level, and double-click to quickly switch the ASR intervention level.

Check the distance between the front and rear wheel speed sensors and the wheel speed encoder. Too far a distance will cause the wheel speed sensor to be unable to recognize the wheel speed signal. Incorrectly modified tires may also cause abnormal wheel speed signals.

You can order original spare parts from Tmall Qiulong flagship store and JD.com Qiulong flagship store. (If it is not in the product list, please consult customer service)

Under normal ambient temperature, the charging time of this battery pack is about 4.5 hours. The power should be turned off immediately after full charging. This car uses a high-performance high-rate battery pack, which can be used in the ambient temperature range of -20°C to 50°C. The best effect is achieved when the ambient temperature is 10-30°C. If the ambient temperature is too low or too high, it will affect the battery pack performance and service life. Please do not use it at temperatures beyond the allowable range. Do not charge the battery below 0°C.

JiBee has a reverse function. In the READY state, long press the R/S button of the left combination switch and turn the switch. The reverse speed will be adjusted according to the opening of the switch.

Eliminate the high temperature of the brake system caused by strenuous riding, and it will recover automatically after cooling. In other cases, please stop riding immediately and contact the official dealer.

The original handlebar uses a 28.5mm installation specification. Please choose an off-road motorcycle handlebar. If you modify it yourself, please make sure you fully understand the risks of modification.

The original off-road tire sizes are 80/100*19 and 90/90*19; the original reinforced off-road rear wheel set is optional. If you modify it yourself, please make sure you fully understand the risks associated with modification.

It is strictly prohibited to modify the original frame, flat fork, power system, battery, controller, and motor. Any relevant modifications will automatically void the manufacturer's warranty and the risk will be borne by the user.

First, switch the instrument to the TRIP display state and check the fault code. In addition to the brake power-off protection, throttle overrun protection, and foot support power-off protection, it is recommended to have it checked by the official dealer.

Unless the battery is dead or the key is not turned on, it is recommended to have it tested by an official dealer.

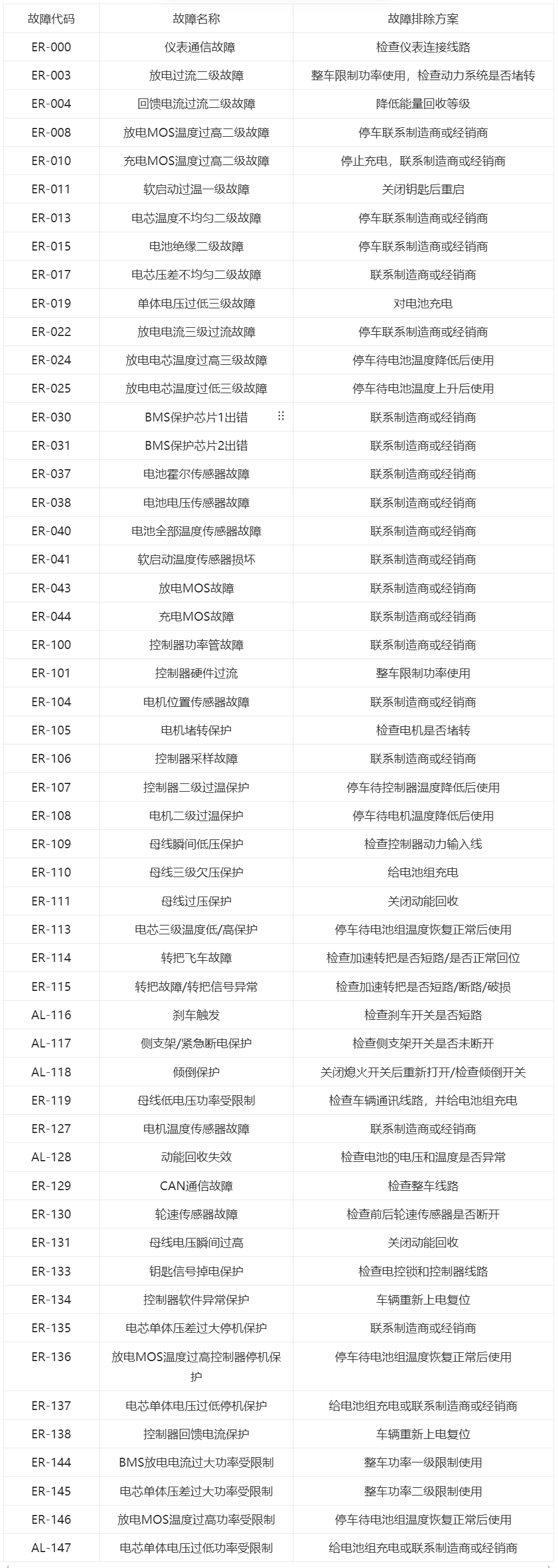

It is recommended that the fault code corresponding to the fault information table be stored in the mobile phone. After a fault occurs, the fault code can be read to understand the fault status immediately. Some fault status can be restored through simple processing or self-recovery. If the fault cannot be solved, please contact the official dealer immediately.

Check the wear of the brake shoes and discs. If they need to be replaced, please replace them in time. Check whether the installation position of the brake calipers is centered and whether foreign objects are stuck on the brake shoes. Check whether the discs are deformed. Check whether the discs and brake shoes are stained with oil. If it cannot be solved, please go to the official dealer to check.

Check the wear of the brake shoes and discs. If they need to be replaced, please replace them in time. Check whether the installation position of the brake calipers is centered and whether foreign objects are stuck on the brake shoes. Check whether the discs are deformed. Check whether the discs and brake shoes are stained with oil. If it cannot be solved, please go to the official dealer to check.

Please contact your dealer immediately for inspection. It may be that there is insufficient oil storage in the brake upper pump, or there may be oil leakage in the upper pump piston.

Check the tire wear. If the tire is left for too long, the rubber will age. It is recommended to replace the tire after one year regardless of whether it is used or not. Excessive air pressure will also cause a decrease in grip. Please ensure that the air pressure is within the appropriate range (different tires have different tire pressure ranges). Different ground conditions and temperatures will also greatly affect the friction of the tires.

Check whether the spokes are loose and whether the wheel axle is locked as specified. Check whether the bearings are severely worn and whether there are any abnormalities in the tires.

Check the condition of the belt. The synchronizing teeth of the belt may be damaged or the belt may be broken.

Make sure the chain is properly lubricated and check each link for deformation or damage.

Replace damaged spokes and have the spokes re-aligned by a professional.

Check whether both sides of the front fork are parallel. Loosen spring preload, turn down compression damping, and perform maintenance on schedule.

Check whether the pivot point of the rear shock absorber linkage is smooth and relax the spring preload, but do not cause the spring to become loose. Turn down the compression damping and perform maintenance on time.

Check whether there is friction with foreign objects on the exterior part. If the sound comes from the shock absorber itself, please go to the official dealer for inspection as soon as possible.

After ensuring that there are no other sources of oil stains, please go to the dealer for inspection as soon as possible. It is normal to have a thin oil film on the inner shock absorber tube. Pay attention to the distinction.

Check whether the battery compartment cover is damaged and whether the rubber pad is missing or displaced. When everything is normal, make sure there is sufficient pre-pressure on the battery when the battery compartment cover is locked.

Turn off the key, lift the car, check whether the front fork legs are parallel, check whether the handlebars are aligned or deformed, check whether the brake handle angle changes, check whether the braking function is normal, check whether the brake disc and chain disc are deformed, and check whether the pedals, board, and bracket are damaged or deformed. Check whether the throttle handle is damaged or smooth, and finally turn on the key to check whether the vehicle is working properly.

Loosen all the fastening screws of the front fork upper connecting plate, remove the upper connecting plate, tighten the directional bearing tightening bolt, ensure that the headset gap is zero, and there is no obvious damping in the rotation direction, and then reinstall the upper connecting plate. Tighten the upper connecting plate holding bolt to 40N.M and then tighten the front reducer holding bolt to 13N.M.

Stop using the vehicle immediately, check whether the brake handle is deformed, check the wear of the brake pads and discs, check whether the brake oil is leaking, and observe the braking amount through the accelerator observation window. If you cannot determine, please go to the official dealer as soon as possible to check everywhere.

Check whether the accelerator position is too far inward, causing friction between the accelerator and the handlebar end, and whether there is any foreign matter between the accelerator and the handlebar.

First, you need to check whether the GPS IoT card is in arrears. The specific steps are as follows: Go to Tmall Qiulong flagship store to ask customer service and ask customer service to check.

When not using it for a long time, please charge the battery pack to about 60%-80% capacity for storage, and check the remaining capacity every month. When the capacity is less than 30%, charge the battery pack once to avoid the battery pack losing activity and affecting the performance of the battery, which can cause damage.

Warning: It is prohibited to charge the battery pack below 0°C, otherwise the battery pack will be damaged. You can wait until the battery pack temperature rises above 0°C before charging. The maximum allowable charging temperature inside the battery pack is 60°C (140°F). If the internal temperature of the battery pack exceeds this temperature, it will not be charged until it cools below 60°C (140°F). If the battery pack has recently been discharged rapidly due to heavy driving, the internal temperature of the battery pack may still be above 60°C (140°F), even if the ambient temperature is lower. Never short-circuit the outlet when cleaning the battery pack. Always charge the battery pack in a well-ventilated location away from flammable materials. The battery pack can only be charged with a special charger that matches the original vehicle or is specified by the manufacturer. The use of unapproved chargers or accessories may cause damage or malfunction of the battery pack, or even cause danger. The battery pack is only allowed to rest naturally and return to normal temperature. It is prohibited to use other methods to heat or cool the battery pack.

Warning: The battery pack may not be charged immediately after outputting high power or working under high temperature conditions. The battery pack should cool down for 30 minutes or more before charging begins, as the battery pack management policy prohibits charging when the internal temperature is high. Otherwise, the life of the battery pack will be shortened. If the appearance of the battery pack is found to be damaged, if an odor is smelled during charging, if the battery pack is too hot, or if it still cannot show that it is fully charged for a long time, please stop charging immediately, disconnect the power supply, and contact the manufacturer.

Do not use high-pressure water guns to wash the vehicle. When washing the car, you need to avoid direct flushing of the plugs and wires, and avoid direct flushing of the gaps in the bearings and other rotating parts. Please use a regular water pressure shower, combined with a brush, a rag, and a neutral detergent. Clean the vehicle with detergent and lubricate the chain immediately after cleaning and drying.

Regularly check tire wear and air pressure, check the wear degree of brake pads and discs, pay attention to whether the chain has sufficient lubrication, and ensure the steering and connecting rod parts are lubricated. It is recommended to send it to the dealer for a comprehensive inspection at least every six months.

The original belt can be used for more than 15,000 kilometers under ideal conditions. Considering the unpredictability of usage scenarios, it is recommended to inspect it every 500 kilometers and replace it every year. If it is used extensively off-road, it should be inspected every time and replaced every six months.

Please tighten the chain tension appropriately to ensure that the free range of the chain is 1-2 cm.

With regular maintenance and lubrication, the chain has a long service life. The chain will gradually loosen with wear during use, so it is necessary to adjust the position of the rear wheel to adjust the chain tension. The up-and-down swing spacing of the chain should be adjusted according to the requirements of different vehicle models.

It is strictly forbidden to use a high-pressure water gun to flush the battery pack, and do not soak the battery pack in water. Do not wade the entire vehicle beyond the center of the wheel, as this may cause water intrusion into the battery pack, internal short circuit, and permanent failure of the battery pack. Use water with a small amount of clean water and a rag to clean the battery pack casing.

Our policy is to work with the best motorcycle dealers in the world in order to present our products in the most professional manner. Contact us here.

The advertised cruising distance is obtained by testing under ideal conditions. Any deviation from the test conditions may cause the cruising distance to change. If the power consumption of multiple rides varies too much under the same conditions, please contact the official dealer.

Qiulong Technology official website, Qiulong Technology official account download APP, Jifeng uses Qiulong Technology APP.

Bind the vehicle according to the vehicle identification QR code, IMEI code, and VIN code in the manual.

Find the T-BOX and open the sliding cover from the side to replace the T-BOX IoT card. You can go to the dealer for processing.

Go to Tmall Qiulong Technology Flagship Store to find customer service for the corresponding recharge.

To check the vehicle location and status in the Qiulong Technology APP, and to inquire about the IoT card, please go to the Tmall Qiulong flagship store to inquire with customer service.

When using, the tool must fully engage the tool bit. A larger wrench requires one hand to stabilize the tool to prevent slipping.

It is only used as an auxiliary tool for installation. It is strictly forbidden to directly knock the parts. If direct knocking is required, it needs to be protected with a lower hardness pad.

Precision tools with a higher unit price must be operated in strict accordance with the instructions for use. Ensure the accuracy of torque readings.

Pay attention to selecting electric tools with appropriate torque. High-torque electric wrenches can easily damage bolts or parts during operation.

It is strictly prohibited to use high-torque electric wrenches to lock bolts and nuts of smaller sizes (10mm and below).

When tightening large bolts and nuts, they should only be used for quick pre-tightening. A torque wrench should be used for final locking to ensure the correct torque is achieved.

Pay attention to distinguish between mineral brake oil and DOT brake oil system. Tools and oil products cannot be mixed.

n/a

This car uses a high-performance high-rate battery pack, which can be used in the ambient temperature range of -20°C to 45°C. The best effect is when the ambient temperature is 10-30°C. If the ambient temperature is too low or too high, it will affect To improve the performance and service life of the battery pack, please do not use it at temperatures exceeding the allowable range. Do not charge the battery below 0℃;

Under normal ambient temperature, the charging time of this battery pack is about 4.5 hours. The power should be turned off immediately after full charging;

When not using it for a long time, please charge the battery pack to about 60%-80% capacity for storage, and check the remaining capacity every month. When the capacity is less than 30%, charge the battery pack once to avoid the battery pack losing activity and affecting performance. cause damage;

It is strictly forbidden to use a high-pressure water gun to flush the battery pack, and do not soak the battery pack in water. Do not wade the entire vehicle in water beyond the center of the wheel, otherwise it may cause water intrusion into the battery pack, internal short circuit, and permanent failure of the battery pack. A rag with a small amount of clean water should be used. Clean the battery pack casing and make sure there are no foreign objects inside the plug.

Warn:

It is prohibited to charge the battery pack below 0°C, otherwise the battery pack will be damaged. You can wait until the battery pack temperature rises above 0°C before charging. The maximum allowable charging temperature inside the battery pack is 55°C (131°F);

If the internal temperature of the battery pack exceeds this temperature, it will not be charged until it cools below 55°C (131°F). If the battery pack has recently been discharged rapidly due to heavy driving, the internal temperature of the battery pack may still be higher than 55°C (131°F), even if the ambient temperature is low;

Never short-circuit the socket when cleaning the battery pack;

Always charge the battery pack in a well-ventilated location away from combustible materials. If you want to charge the JiFeng electric motorcycle outdoors, please avoid charging in the rain.

The battery pack can only be charged with a special charger that matches the original vehicle or is specified by the manufacturer. Using unapproved chargers or accessories may cause damage or malfunction of the battery pack, or even cause danger;

The battery pack is only allowed to rest naturally and return to normal temperature. It is prohibited to use other methods to heat or cool the battery pack;

The battery pack may not be charged immediately after outputting high power or working under high temperature conditions. The battery pack should cool down for 30 minutes or more before charging begins. Because the battery pack management policy prohibits charging when the internal temperature is high, otherwise the life of the battery pack will be shortened;

If you find that the appearance of the battery pack is damaged, you smell a strange smell during charging, the battery pack is too high, or it still does not show that it is fully charged for a long time, please stop charging immediately, disconnect the power supply, and contact the manufacturer immediately.

Check whether the shock absorption function is intact;

Check whether there is any foreign matter in the shock-absorbing inner tube. Please keep the inner tube clean and intact in appearance;

Check the dust jacket for large amounts of oil leakage;

Check the outer tube and other parts for damage.

Do not disassemble the shock absorber of JiBee. Follow these steps to lubricate your suspension and keep it in top condition:

Remove the protective cover;

Clean the dust on the surface of the fork tube (dirt, old lubricating oil, etc.);

Use special shock-absorbing lubricant on surface A of the front shock-absorbing inner tube and apply it evenly.

Warn:

It is strictly prohibited to flush upward against the lips of the front shock absorber dust seal B and rear shock absorber dust seal C. This will cause sediment to rush into the oil seal lips and cause wear and oil leakage.

Do not use soluble or corrosive solvents for cleaning, otherwise it will cause damage to the dust-proof oil seal. It is recommended to use neutral detergent and soft cotton cloth to assist cleaning

Shock absorbers contain high-pressure gas or liquid

Do not attempt to tamper with or disassemble the shock absorber

Please protect the cylinder from impact, high temperature or open flame

After driving the vehicle, the shock absorbers and gas cylinders may be in a high temperature state. Please avoid burns.

The chain should be cleaned of dirt after each use of the vehicle. To maintain proper lubrication, apply a specific chain oil.

Regularly check the status of the chain. Place the JiBee on a platform or bracket so that it supports the JiBee from the bottom bracket area. The rear wheel is in a suspended state. After moving the rear wheel for a certain distance, use a chain wear measuring tape to measure the wear condition of the chain. , if there is significant wear, replace the chain with a new one;

Regularly check the chain tension (see picture), lift up the middle chain of the lower row, and check visually or with a ruler whether the up and down swing of the chain is within 10-25mm. If it is not within the range, please adjust the chain immediately.

• After removing the key from the electronically controlled lock and turning off the emergency shutdown switch, use a car stool to prop up the car body so that the rear wheels are suspended in the air.
• Loosen the rear axle nut C
• Loosen the lock nut A of the left and right adjustment bolt B
• Adjust the left and right adjusting bolts B at equal intervals until the chain is adjusted within the specified range.
• Tighten the rear axle nut C
• Tighten the left and right locknuts A to fix the position of the adjusting bolt B
• Test ride a motorcycle
• After the test ride, please recheck whether the chain is adjusted correctly and readjust it if necessary

Notice: When adjusting the chain, please adjust the adjusting bolts on both sides equally.

Tools used: waterproof gloves, bucket, spray bottle, brush, rag, warm water, soap, degreasing cleaning agent, neutral cleaning agent, motorcycle chain oil.

Place the ExtremeBee on the platform or stand so that it supports the ExtremeBee from the bottom bracket area and the rear wheels are in the air;

Use a brush and a water spray bottle (filled with clean water or neutral detergent) to thoroughly clean large dirt on the chain;

Apply degreasing cleaner to the lower chain, and wipe the chain clean with a rag when finished;

Apply motorcycle chain oil in front of the rear sprocket of the lower chain. A small amount is enough and should not be soaked. Then immediately turn the rear wheel forward to allow the chain oil to pass through all the chains to ensure that the rollers and the active nodes of the connector are coated. When applying chain oil, try to avoid contaminating the braking system.

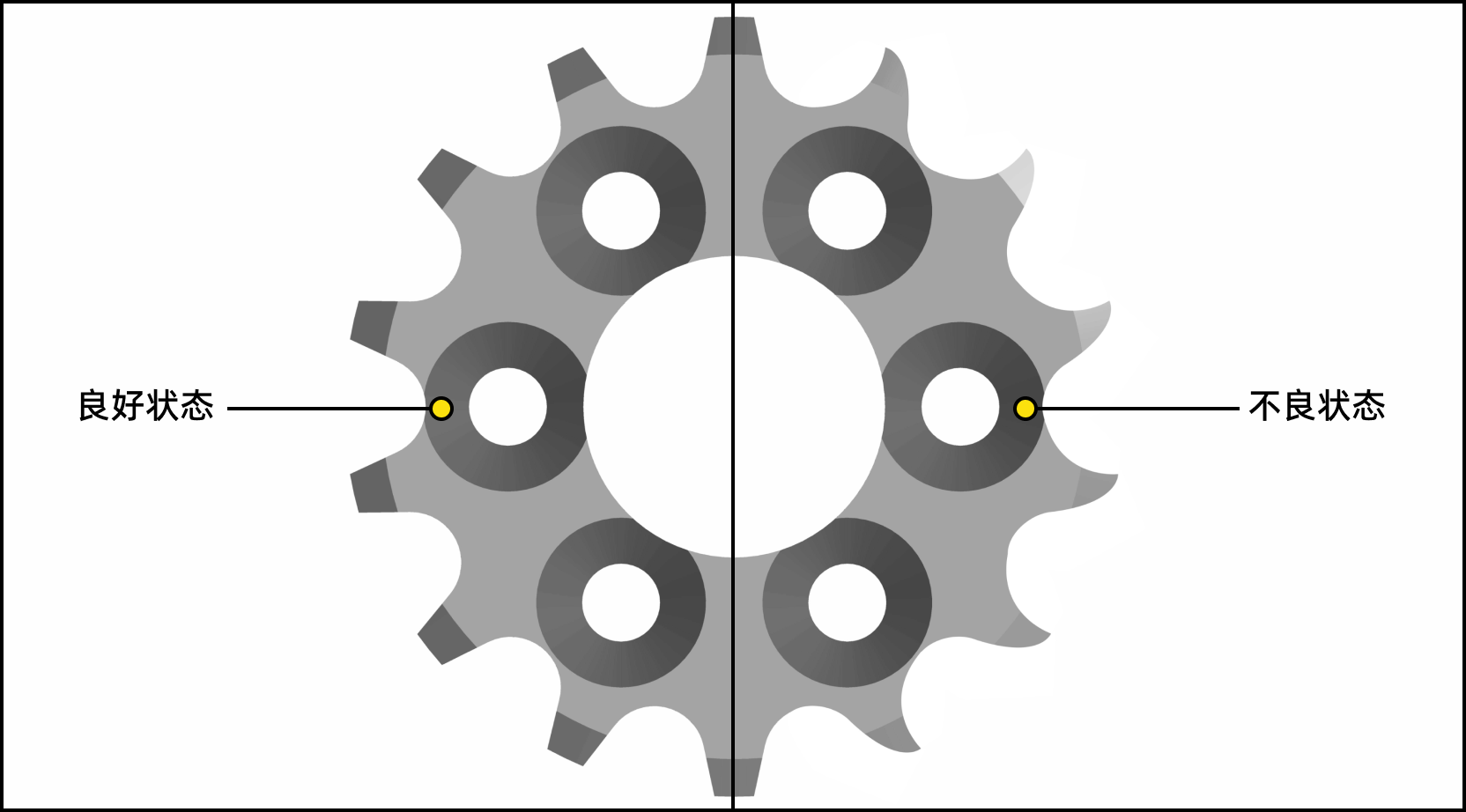

Check the front and rear sprockets for wear. The images below show the shape of the correct teeth and the worn ones. (Good condition/Bad condition) If it is in bad condition, it should be replaced.

Check whether the tires are damaged by foreign objects before each use of the vehicle;

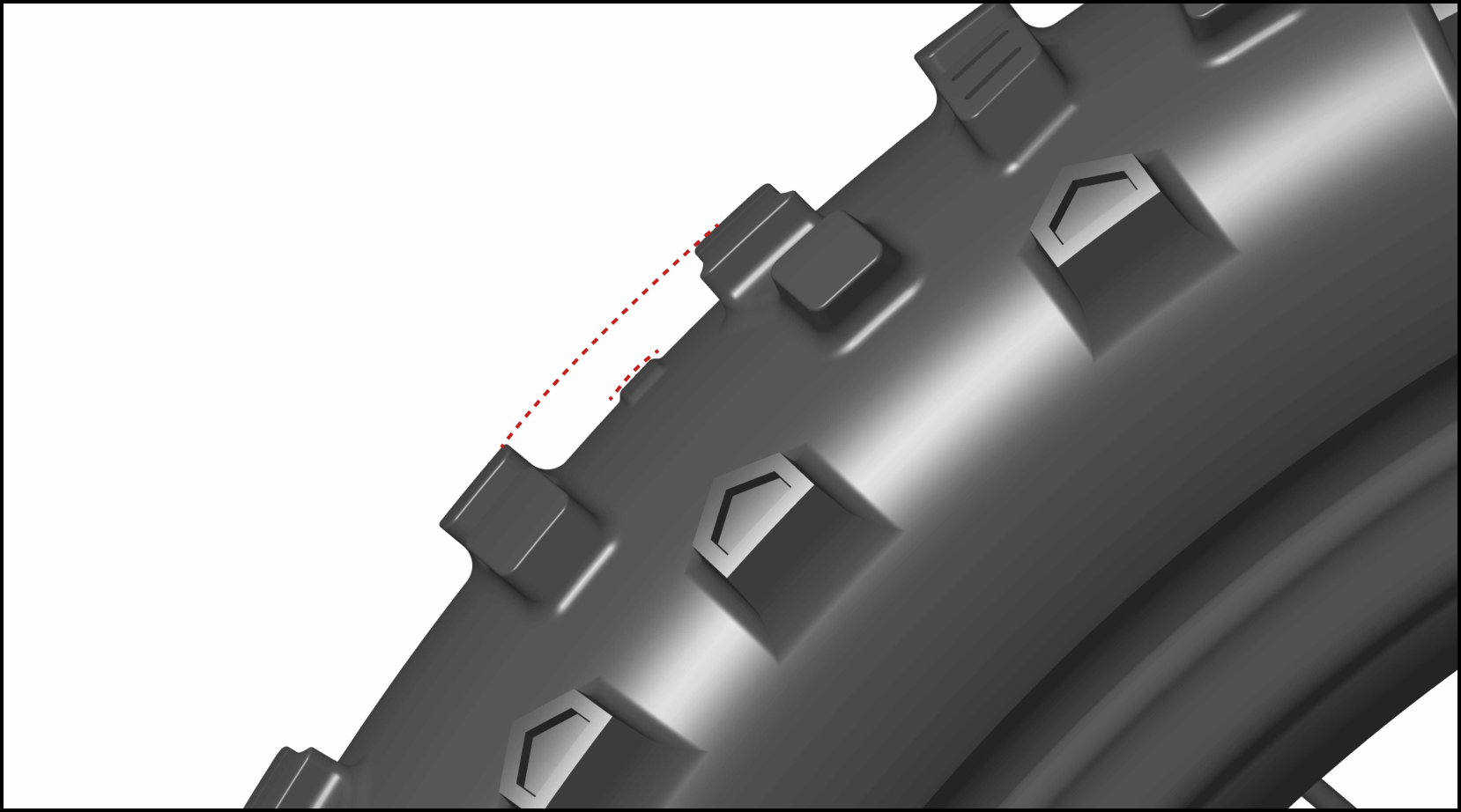

Regularly check the height of the tire teeth. When the tire teeth are worn to the safety line, you must replace the tire with a new one immediately.

Inner tube pressure checks must be performed when the tires have cooled down, which means tire pressure should not be used in the last few hours before the inspection;

It is recommended that the tire pressure be set to 225kPa for the front and rear wheels on paved roads, and 100-150kPa for the front and rear wheels on non-paved roads.

Notice:

Driving with improper pressure or tires can cause:

• unexpected damage
• Loss of control of vehicle
• premature wear
• Clamp and pierce

Place the Polar Bee on the support frame so that it supports the Polar Bee from the bottom bracket area;

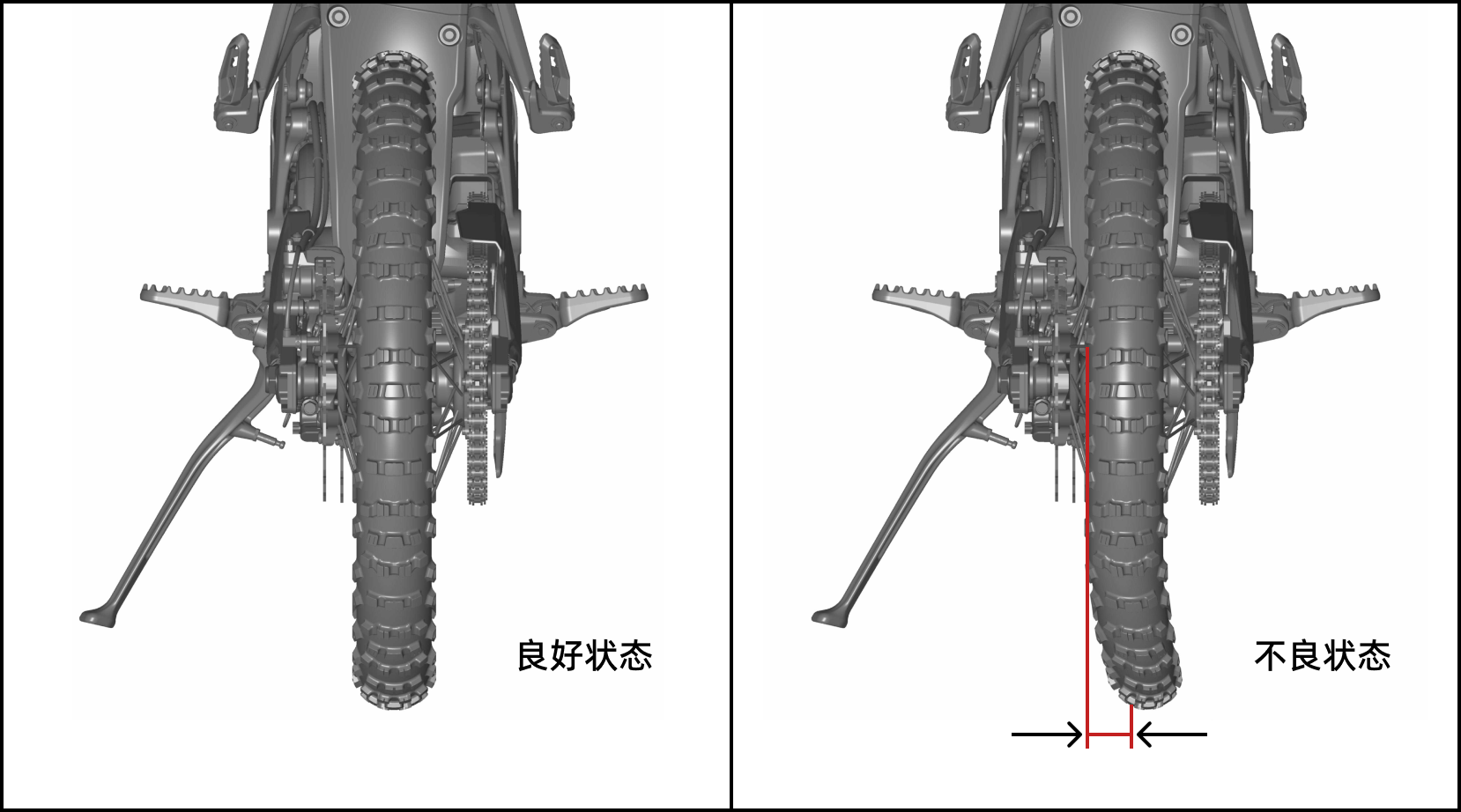

Confirm that the wheel rotates freely and check whether the wheel oscillates laterally/longitudinally. If lateral/longitudinal oscillation occurs, measure the lateral/longitudinal movement with an auxiliary tool. If it exceeds 1.5 mm, check whether the rim is deformed, whether the bearing is damaged, etc. If the rim is in good condition, check and confirm whether the tire is correctly installed on the rim;

If the rim is OK but it is at an angle from vertical, then the flat fork may be bent or incorrect;

If there is a big difference in spoke tightness, it needs to be checked and adjusted in time using an adjustment tool;

Make sure the spoke tension is correct or the vehicle may become unstable. Use a spoke tensioner to check that the spokes are tight, if any spoke is not tight, tighten it and check the condition of the rim and hub clearance.

Every time you use the vehicle, you must use the brake handle several times and feel whether the braking force is normal before starting without power;

Regular oil replenishing and air exhausting of the brake pump can effectively avoid failures such as reduced braking force or complete failure.

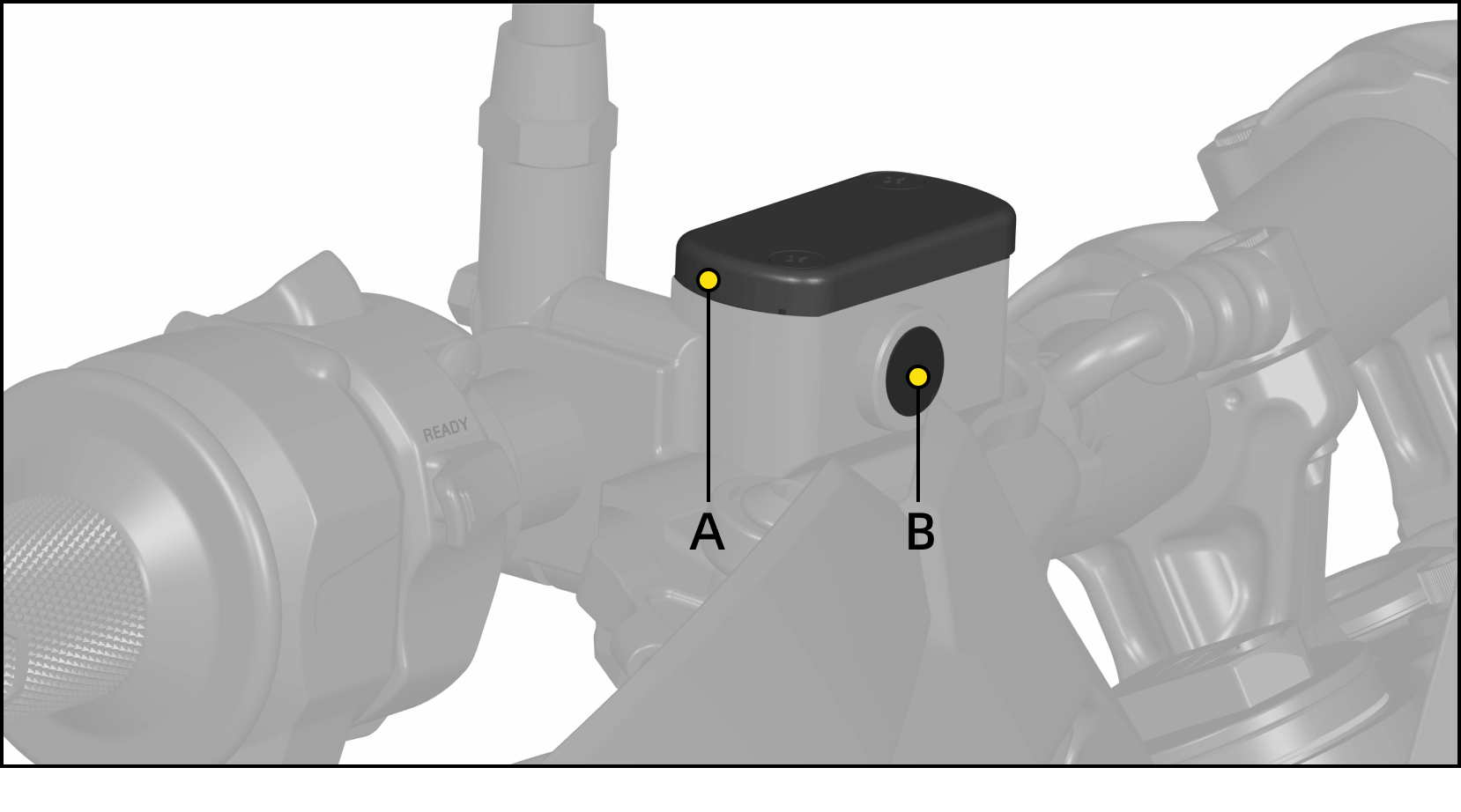

The brake fluid level can be observed through oil mirror B. If the fluid level is lower than one-third of the oil glass, brake fluid must be replenished. Before opening the oil cup, clean any dust or debris on cap A to avoid contaminating the brake fluid;

Low brake fluid levels indicate possible brake pad wear or hydraulic system leaks, check for worn brake pads and/or hydraulic system leaks. Use only new DOT4 brake fluid from a sealed container.

The steps for adding brake fluid are as follows:

• Unscrew the two screws on the upper cover of the oil cup, and remove the upper cover of the oil cup and the oil cup gasket.
• Add new DOT4 brake fluid
• Check the lid seal to make sure there is no wear or damage and that it is in the correct position
• Install the oil cup upper cover screws (torque 1-2N.m)

Notice:

Do not splash brake fluid on painted surfaces as this may damage the paintwork. Brake fluid spilled onto plastic products can cause them to corrode

Be sure to place an absorbent towel under the master cylinder reservoir before removing the cap

Warn:

Before checking the fluid level, the JiFeng electric motorcycle should be placed upright on a flat ground and the direction should be returned to the straight position to ensure that the oil cup is in a horizontal position.

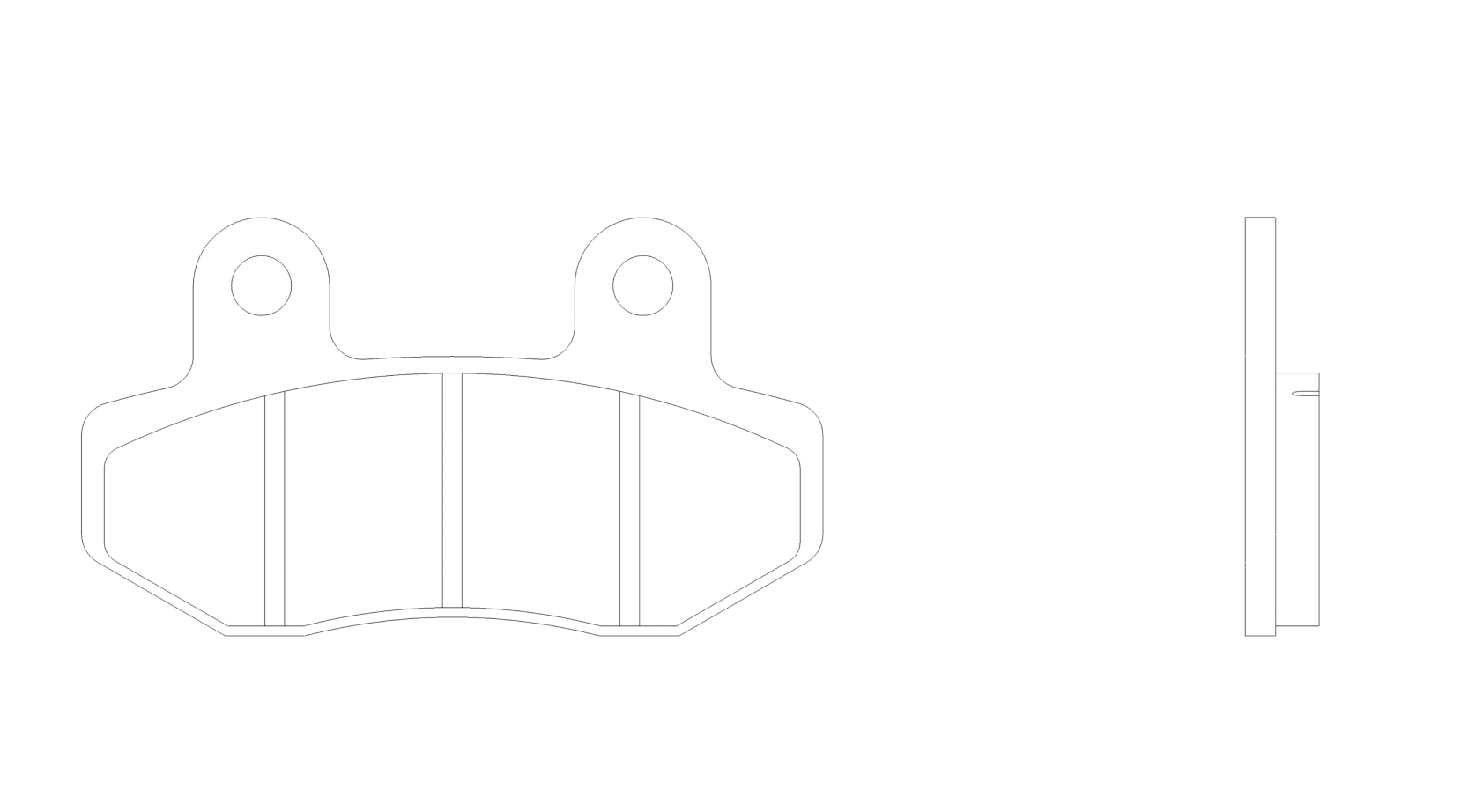

Every time you use the vehicle, you must check whether the brake shoe is in normal condition. If the brake shoe wear area is uneven, the gap is uneven, the wear is serious, the brake shoe is seriously polluted, etc., the brake caliper must be adjusted and the brake shoe replaced in time. piece;

Regularly check that the caliper pistons are functioning properly and clean.

Check the brake oil pipe regularly for damage or oil leakage. If so, replace it immediately.

Remove the brake caliper;

Use a 3mm hex wrench to remove the brake shoe pin screw B and the pin metal buckle;

Take out the brake shoe A and the return spring piece;

Use a tool to push the brake caliper piston inward to return it to the same plane as the inner wall of the caliper;

Install the new pad in the reverse order of disassembly. The tightening torque of the safety screw is: 2.5 N.m. After installing the new brake pads, you must press the brake handle several times until the contact point between the brake pads and the disc is stable.

Notice:

When returning the brake caliper piston, it is necessary to avoid damage to the piston caused by improper operation.

It is recommended to check and run-in after replacing new brake shoes or brake discs to ensure that the brake discs and brake pads re-adapt and match. Correct running-in can improve the braking feel and reduce or eliminate braking problems. noise.

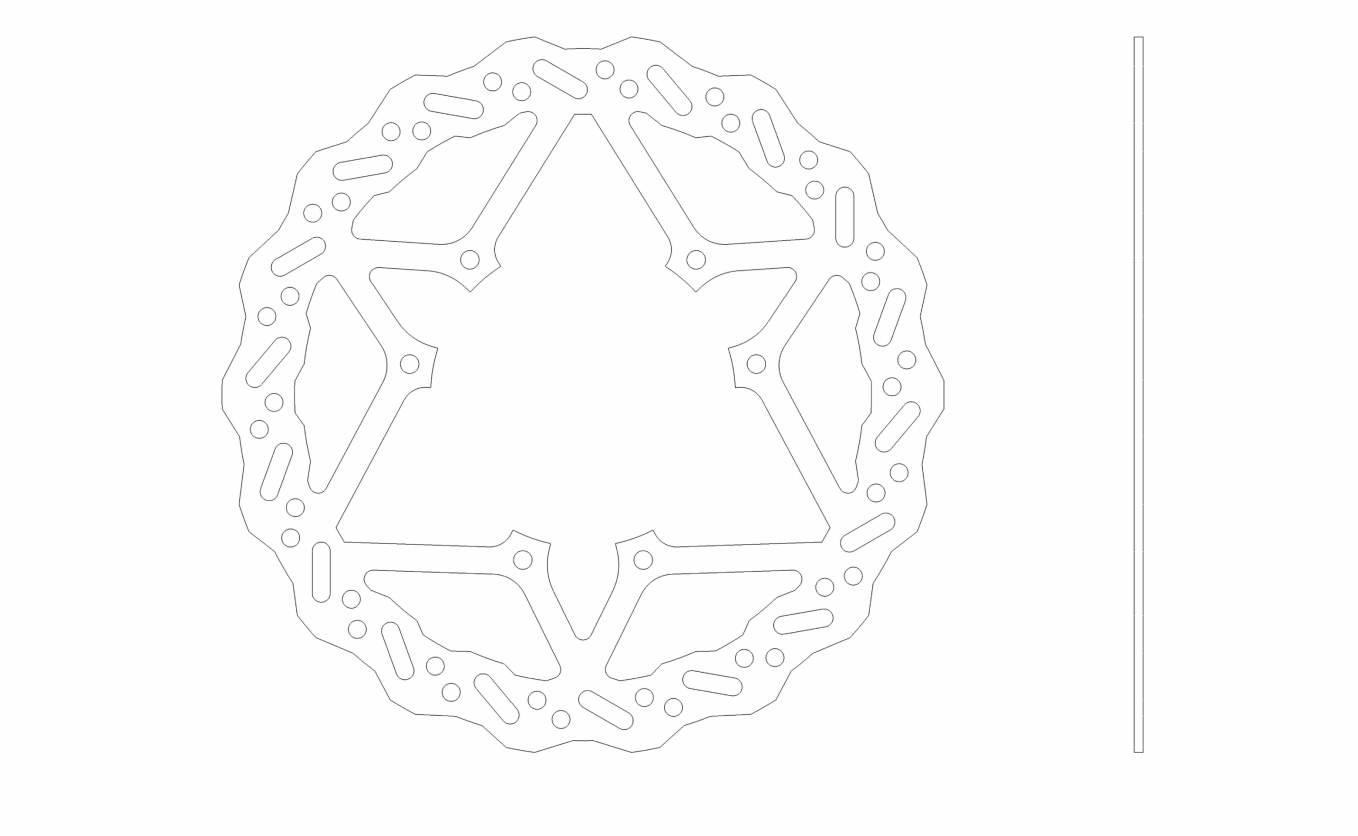

Regularly check that the thickness of the brake disc working area is at least 2.5mm. If it is lower than this thickness, it needs to be replaced immediately.

Brake discs must be flat and undeformed to ensure proper operation. Warped brake discs will cause irregular braking feel, poor braking and control, and accelerate brake shoe wear.

Place the SpeedBee on the support frame so that it supports the SpeedBee from the bottom bracket area, rotate the wheel and observe the gap between the brake disc and brake shoe to check whether there are indentations or bends in the brake disc. Slight lateral deflection is acceptable as long as the brake discs are not rubbing. JiFeng electric motorcycles are equipped with a parking mechanism that should be able to prevent the rear wheel from rolling when the rear brake parking paddle (located on the left handlebar) is in the parking position. Please check the parking brake regularly.

Notice:

Do not touch the braking surface of the brake disc or shoe with your hands, as the grease on your hands may reduce the braking force.

JiFeng electric motorcycle is equipped with a parking brake, which can lock the rear wheel when the parking paddle is in the parking position. Please check the parking brake regularly.

• Support the JiFeng electric motorcycle on the support bench so that the rear wheel is suspended in the air;
• Hold the rear brake handle firmly and hold it;
• Engage the positioning teeth on the parking brake paddle with the limit teeth on the parking block;
• Release the rear brake handle, and the rear brake paddle will be fixed in the corresponding parking gear;
• At this time, the parking brake can effectively lock the rear wheels, and the braking force is different in different parking gears.

Notice:

If the parking brake cannot effectively lock the rear wheels, please contact an authorized dealer or after-sales service in time.

If the battery compartment is not opened for a long time, it must be opened and closed at least once within 5 months.

Notice:

5 months is only a reference value. Please be sure to use the battery compartment cover at shorter intervals to ensure that the air support remains in normal working condition.

The tightening torque values of screws and nuts need to be checked regularly on important parts of the vehicle;

Vehicles need to regularly check whether the ties, clamps and buckles of various parts are functioning normally;
